Product Details
＋
- Up to three 200W high performance tools can be operated simultaneously for up to 600W of total power on the 3-channel, WXR3 rework system
- Used for soldering & desoldering of both large & small SMT components
- Two internal pumps provide the sources for hot air, desoldering vacuum & a vacuum pick up tool for a completely self-contained rework system
- LCD display simultaneously monitors all parameters, connected tools & peripheral devices. Adjust parameter setting and other functions through menu
- Compatible with all WX tools, accessories, & peripheral

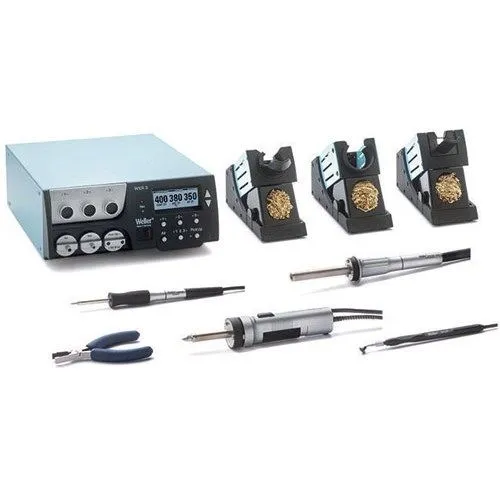

Includes
- WXR Power Unit 3, 3 Channels
- WXHAP 200 Hot Air Iron
- WXDV 120 Desoldering Iron
- WXP 65 Soldering Iron
Specifications
- Voltage: 120 V
- Dimensions L x W x H (mm): 273 x 235 x 102
- Max. Vacuum: 0,7 bar
- Max. hot air flow rate l/min (depends on tool): 15
- Capacity l/min: 18
- Power: 420 W (600 W)
- Dimensions L x W x H (Inches): 10,75 x 9,25 x 4,02
- Weight (approx.) in kg: 6.7
- Temperature Stability °C: ±2
- Temperature Stability °F: ±4
- Temperature Range (depends on tool) °C: 100 - 450 (550)
- Temperature Range (depends on tool) °F: 200 - 850 (999)
- USB Port: on
- Overcurrent Release: 2,0 A
- Temperature Accuracy °C: ±9
- Temperature Accuracy °F: ±17
- Channels: 3
- IPC-compliant: ja
- Fuse: n.a.
- ESD-Safe: On
- WX compatible: on
- Display: 255 x 128 dots / Backlighting
- Built-in Pump: Periodic duty 30/30 s
- Power Cable: USA
