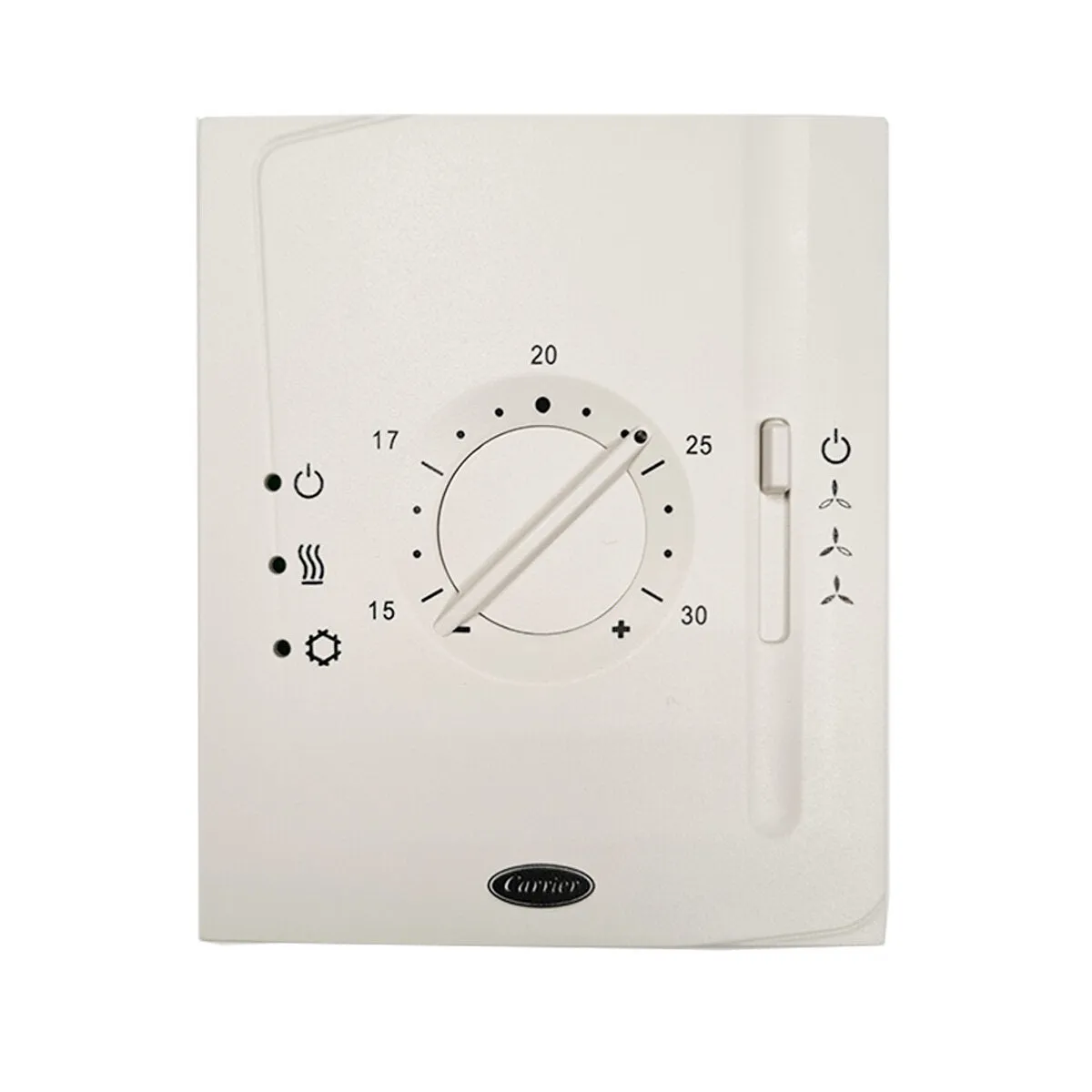

Wall-mounted electronic thermostat control for 2-pipe and 4-pipe fan coils, 42NC series.

The 33TZ-AC01 wall control is suitable for controlling fan coil units in both heating and cooling modes.
With:
- Power button for switching the fan coil on/off;
- Mode button for manual adjustment of the heating/cooling functions indicated by special red/blue LEDs;
- Ventilation Adjustment Button with the 3 Speeds (I-II-III) that can be set manually, the Economy mode for energy saving and the Auto mode, all signaled from time to time by special LEDs;
- Temperature Selector Knob with a range from 10°C. at 30°C.

Also equipped with an Antifreeze Function which is activated with temperatures below 7°C, Night Mode and Darkening which acts on the lights of the operating LEDs, AutoTest , possibility of configuring the adjustments during installation using special microswitches, possibility of using the sensor internal temperature in case of wall installation or a remote sensor - Minimum Temperature Probe in case of installation on board the machine (to be purchased separately).

WARRANTY

The warranty is the Official Carrier Italia one and has a duration of 24 months.
