Product Description:

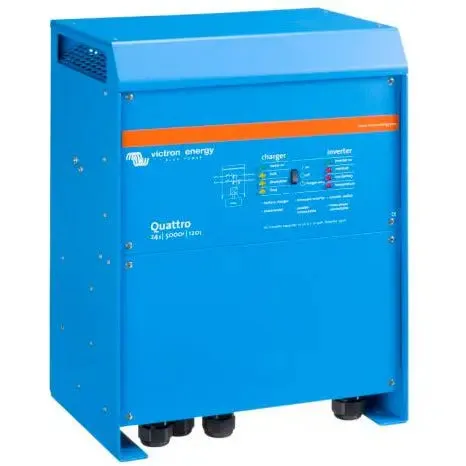

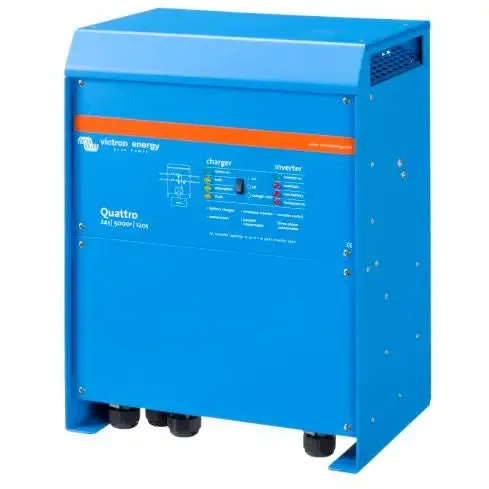

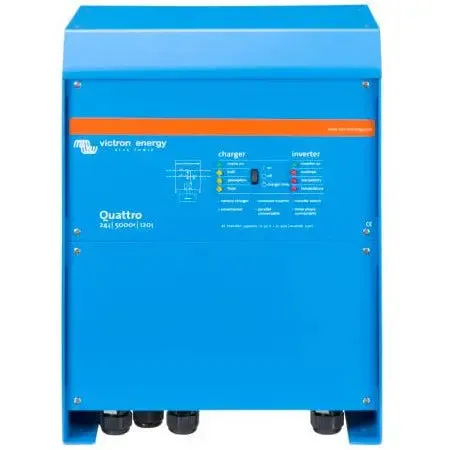

The victron Quattro 24/5000/120-100/100 230V VE.Bus is a powerful and versatile inverter/charger designed for use in a wide range of applications. With its advanced features and high-quality construction, this device is ideal for powering large off-grid and backup power systems, as well as for use in marine and mobile applications.
Featuring VE.Bus technology, the Quattro 24/5000/120-100/100 230V can be easily connected to other VE.Bus-enabled devices, providing seamless integration and control over your entire power system. The device is also compatible with a range of battery types, including lead-acid, lithium-ion, and more.
Specs
| Specification | Value |
|---|---|
| Inverter Power Output | 5000W |
| Nominal Battery Voltage | 24V |
| Output Voltage | 230VAC |
| Frequency | 50Hz/60Hz (auto-detection) |
| Output Waveform | Pure Sine Wave |
| Maximum Efficiency | >94% |
| Zero-Load Power Draw | <35W |
| Maximum Continuous RMS Current | 21.7A |
| Peak Efficiency | 94% |
| Charger Power | 100A (at 24V) |
| Maximum Charge Current | 100A (at 24V) |
| AC Input Voltage Range | 170-265VAC (adjustable) |
| AC Input Frequency | 45Hz - 65Hz |
| Battery Voltage Range | 19-33V |
| Charger Algorithm | Adaptive 4-stage charge |
| Transfer Time | <20 milliseconds |
| Communication Ports | VE.Bus |
| Monitoring and Control | VE.Direct, VE.Bus, Bluetooth Smart, and USB |
| Cooling | Temperature-controlled fan |
| Operating Temperature Range | -40°C to 65°C (-40°F to 149°F) |
| Certifications | CE, RoHS |
Features:
- Dual input: The Quattro 24/5000/120-100/100 230V VE.Bus features two AC inputs, allowing for seamless switching between mains and generator power sources.
- Pure sine wave output: This inverter/charger delivers a clean and stable pure sine wave output, ensuring that your sensitive electronics and appliances are powered safely and reliably.
- High power output: With a maximum power output of 5000VA, this device can handle large loads with ease.
- Advanced battery charging: The Quattro 24/5000/120-100/100 230V VE.Bus features advanced battery charging technology, with a charge current of up to 120A and support for a wide range of battery types and chemistries.
- Seamless integration: VE.Bus technology allows for seamless integration with other VE.Bus-enabled devices, providing complete control over your entire power system.
- Robust construction: The Quattro 24/5000/120-100/100 230V VE.Bus is built to last, with a rugged aluminum housing and high-quality internal components.
- Easy to use: The device is easy to install and operate, with a simple and intuitive user interface and easy-to-follow instructions.
- Comprehensive protection: The Quattro 24/5000/120-100/100 230V VE.Bus features comprehensive protection against overvoltage, undervoltage, overtemperature, and short circuits, ensuring safe and reliable operation in all conditions.
Whether you need a powerful and reliable inverter/charger for your off-grid power system, backup power system, or marine or mobile application, the Quattro 24/5000/120-100/100 230V VE.Bus is an excellent choice. With its advanced features, high power output, and robust construction, this device is sure to provide reliable and efficient power for years to come.
