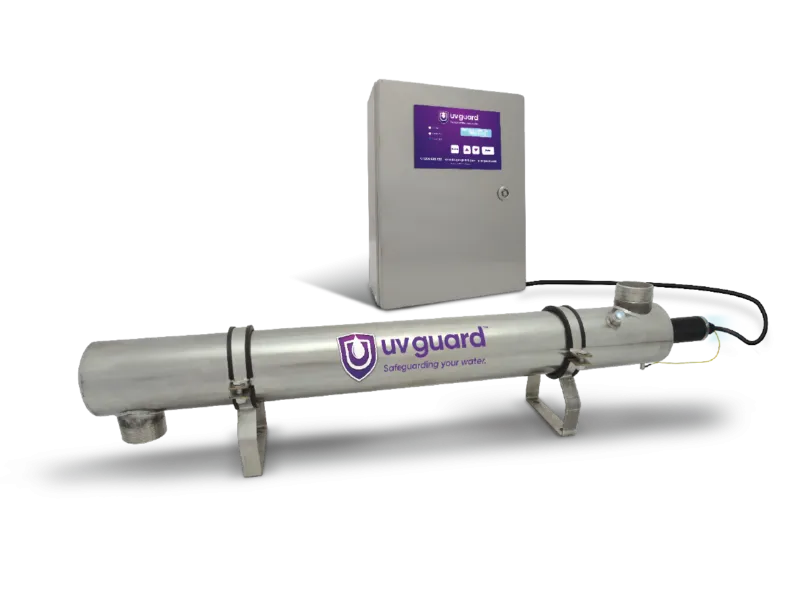

UV Guard S-Series Commercial UV Water Disinfection

UV Guard S-Series is a WaterMark-certified UV water disinfection system suitable for moderate-flow Industrial and Commercial applications. With 26 models and customizable features, this solution offers versatility for industrial and commercial use, with a maximum flow rate of 50m³/hour. With a WaterMark certification and a maximum flow rate of 50m³/hour, UV Guard S-Series is a versatile and customisable solution for moderate-flow Industrial and Commercial applications.

FEATURES

Multiple models to suit a range of commercial UV disinfection applications
Australian WaterMark cartified (Level 1)
Durable food-grade 316L stainless steel UV reactor
Multiple inlet & outlet options
Internal flow miser optimises UV exposure
Wide range of optional controller features

ADVANTAGES

Robust and highly durable food-grade 316L stainless steel UV reactor
Multiple inlet and outlet options to suit any application - BSP, sanitary or flanged in L or Z shape configuration
Range of UV lamp types for different uses - Low Pressure, Low Pressure High Output, Low Pressure Amalgam and ozone producing
Internal flow miser optimises UV exposure of all liquids passing through the UV reactor
Optional controller features allow you to choose exactly what you neeed - indoor or weatherproof, UV lamp safety devices, UV intensity monitoring, supervisory contoller integration and more
Convenient viewport and transparent lamp lead window for UVi sensor integration and easy visual UV lamp inspection
Adjustable mounting brackets meximise installation flexibility - UV reactor can be rotated 180 degrees

SYSTEM OPTIONS

Lamp safety interlocking device
Manual Quartz wiping systems
Remote on/off
Modbus module
Uvi monitoring
SMS fault module
Fault volt free contacts
Reactor temperature safety system
Polycarbonate, powder coated steel and stainless steel IP rated and controller enclosures
