Product Details
＋
The GY-8511 UV Sensor Module (GY-ML8511) is a sensor module designed for measuring ultraviolet (UV) radiation levels. It provides an analog output that corresponds to the intensity of UV light detected.
UV Detection: The sensor module is equipped with a photodiode sensitive to UV light. When exposed to UV radiation, it generates an electrical signal proportional to the intensity of the UV light.
Analog Output: The module provides an analog voltage output that varies with the intensity of UV light. This analog voltage can be read by an analog-to-digital converter (ADC) on a microcontroller.
Operating Voltage: The module is designed to work within a specified voltage range, typically compatible with common microcontroller platforms like Arduino.
Sensitivity Range: The sensor is designed to measure UV-A and UV-B radiation, which are the ranges most relevant to human health and sun exposure.
Compact and Easy to Use: The GY-8511 module is compact and can be easily integrated into various electronic projects. It can be connected to microcontrollers using standard jumper wires.
Weather Stations: UV sensors are often integrated into weather monitoring systems to provide UV index data as part of weather reports.
Skin Care Products: In the cosmetics and skincare industry, UV sensors can be used to monitor the effectiveness of sunscreen products and provide recommendations for application.
Environmental Monitoring: UV sensors can be used in research and environmental monitoring systems to measure UV radiation levels in various settings.
Here are some key features and details about the GY-8511 UV Sensor Module:
Features and Specifications:UV Detection: The sensor module is equipped with a photodiode sensitive to UV light. When exposed to UV radiation, it generates an electrical signal proportional to the intensity of the UV light.
Analog Output: The module provides an analog voltage output that varies with the intensity of UV light. This analog voltage can be read by an analog-to-digital converter (ADC) on a microcontroller.
Operating Voltage: The module is designed to work within a specified voltage range, typically compatible with common microcontroller platforms like Arduino.
Sensitivity Range: The sensor is designed to measure UV-A and UV-B radiation, which are the ranges most relevant to human health and sun exposure.
Compact and Easy to Use: The GY-8511 module is compact and can be easily integrated into various electronic projects. It can be connected to microcontrollers using standard jumper wires.
Common Applications:
Sun Protection Devices: The sensor can be used in wearable devices or gadgets that provide real-time information about UV radiation levels to help users take appropriate sun protection measures.Weather Stations: UV sensors are often integrated into weather monitoring systems to provide UV index data as part of weather reports.
Skin Care Products: In the cosmetics and skincare industry, UV sensors can be used to monitor the effectiveness of sunscreen products and provide recommendations for application.
Environmental Monitoring: UV sensors can be used in research and environmental monitoring systems to measure UV radiation levels in various settings.

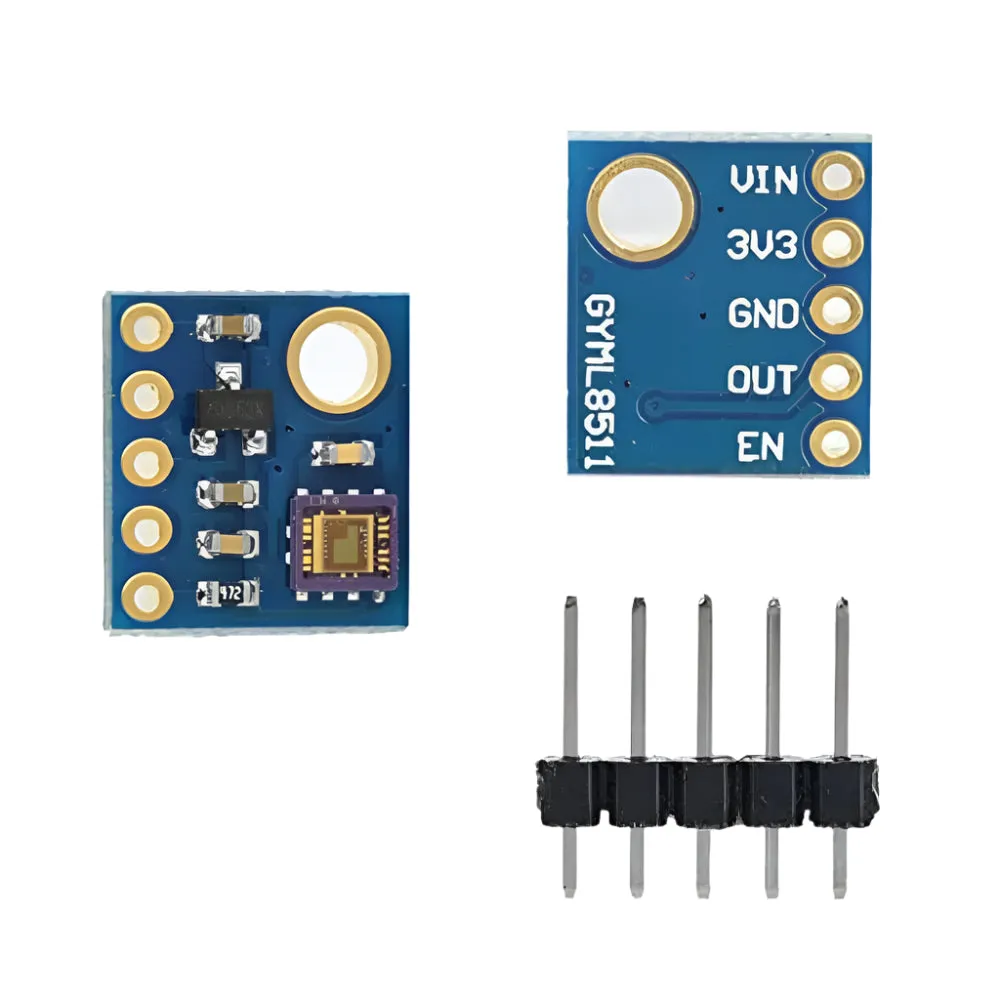

Pinouts
- VIN: Power Connection (3V – 5V)
- 3.3V: Output of the onboard regulator
- GND: Ground
- OUT: Analog Output
- EN: Enable Input
Technical Details
- Model: GY-ML8511
- Operating Voltage (VDC): 3 ~ 5
- Max. Operating Current (mA): 0.19
- Operating Temperature (°C): -40 to 90
- Detection Wavelength Band: 280nm to 390nm
- Peak Wavelength: 365nm
Applications
- Sunburn detectors
- Controlled UV Exposure chambers
- UV Detectors for the safety of Humans, and animals.
Physical Attributes
- PCB Size ( L x W ) mm: 13 x 12
Features
- Photodiode sensitive to UV-A and UV-B
- Embedded operational amplifier
- Analog voltage output
- Low supply current (300uA type) and low standby current (0.1uA type)
Product Video

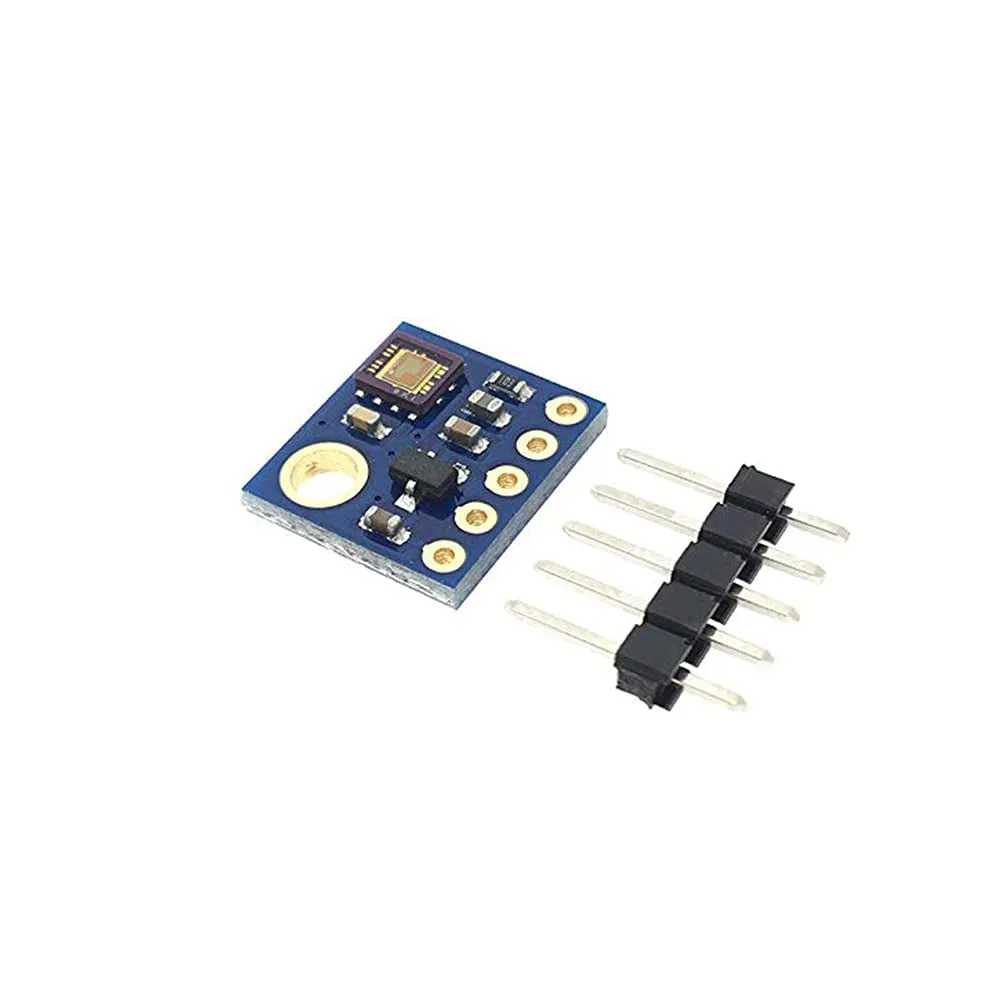

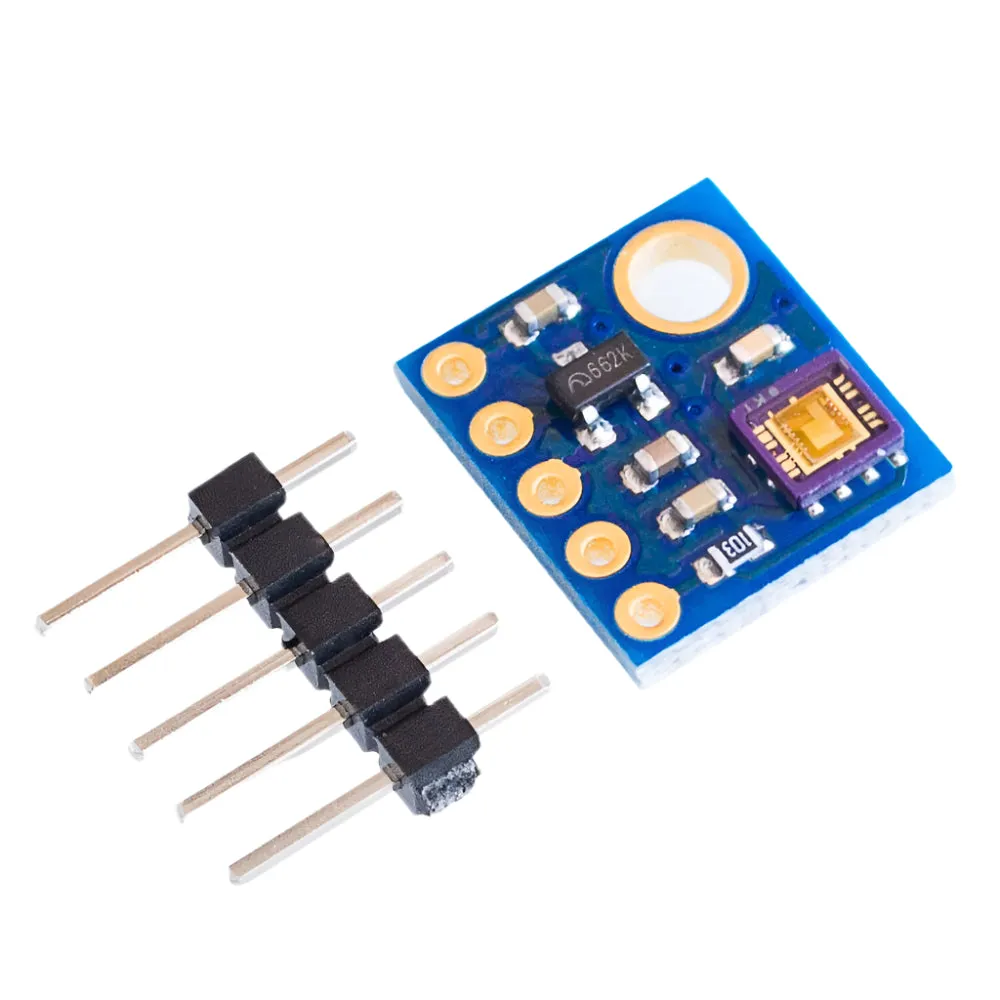

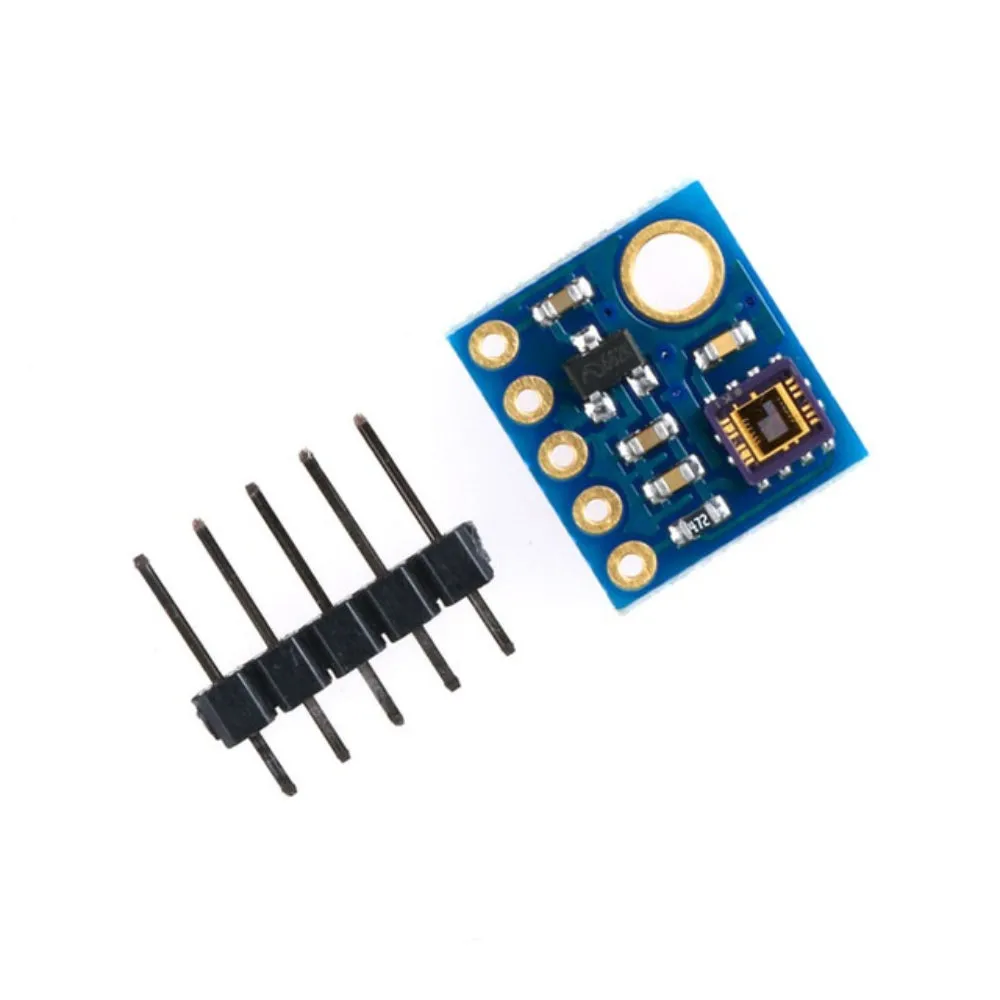

Package Includes
- 1 x GY-8511 UV Sensor Module GY-ML8511 Analog Output UV Sensor
- 1 x 5pin Male-Male Header
