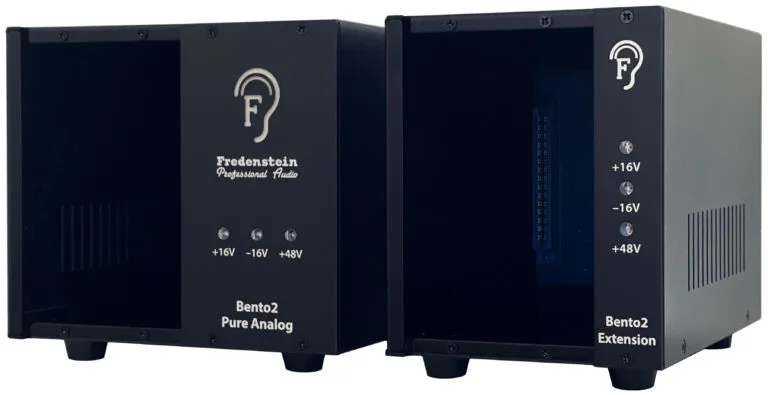

The Fredenstein Bento 2 Pure Analog and Extension are high performance two or four slot module carrier for Fredenstein Series 500 modules or API-500 compatible plug-in cards. Every unit can accept a maximum of 2 modules.
The Bento 2 Pure Analog comes in two version, 120V (mainly North America and Taiwan) and 240V (other international countries) 50 to 60 Hz.
The maximum output currents are: -16V DC 0.75A and 48V DC 250mA.

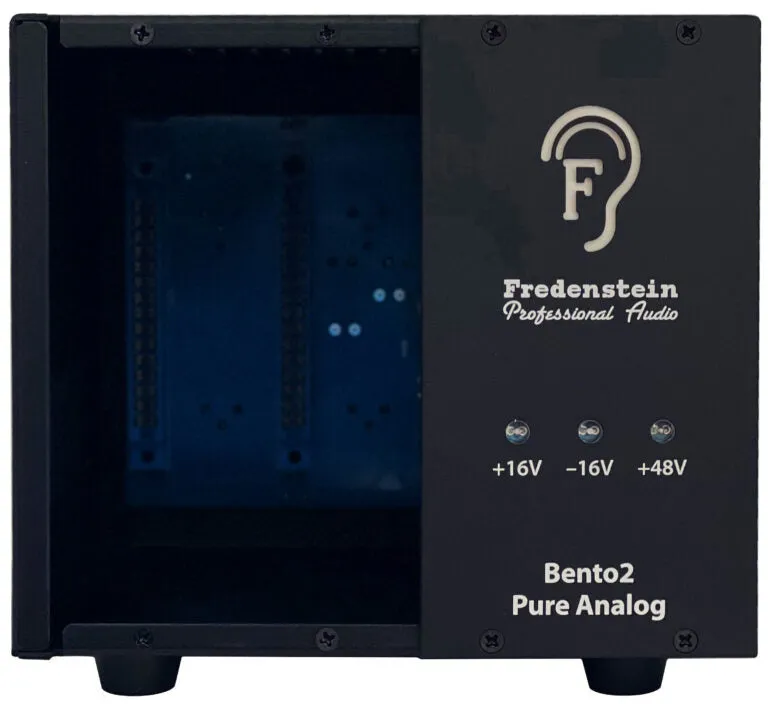

LEDs indicate the power-supply status on the front-panel.

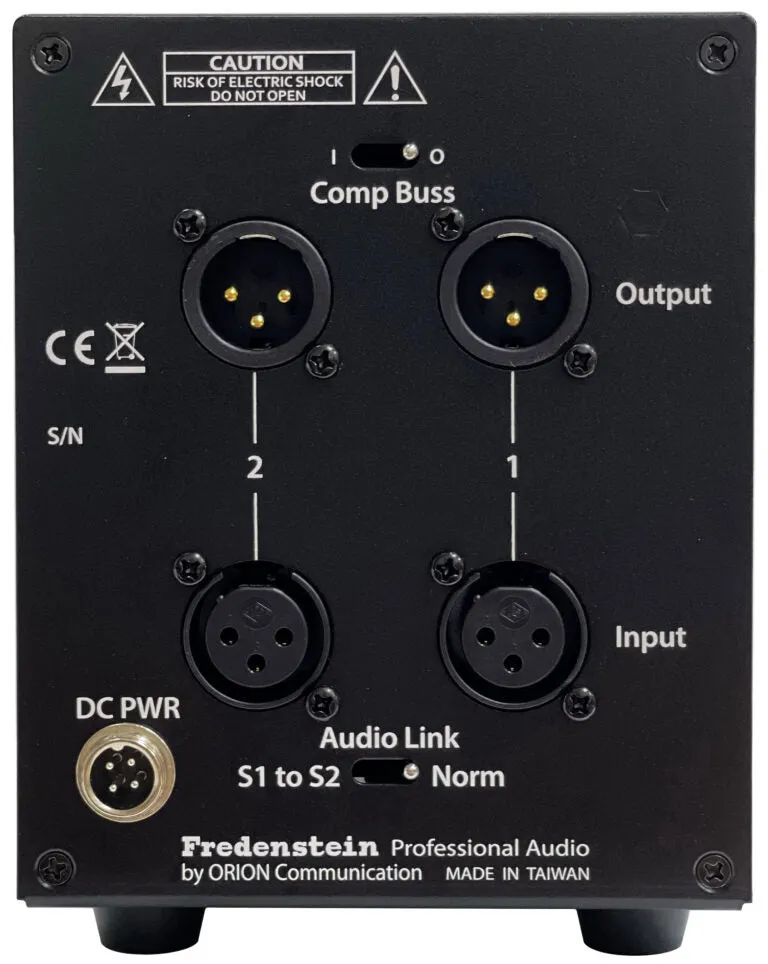

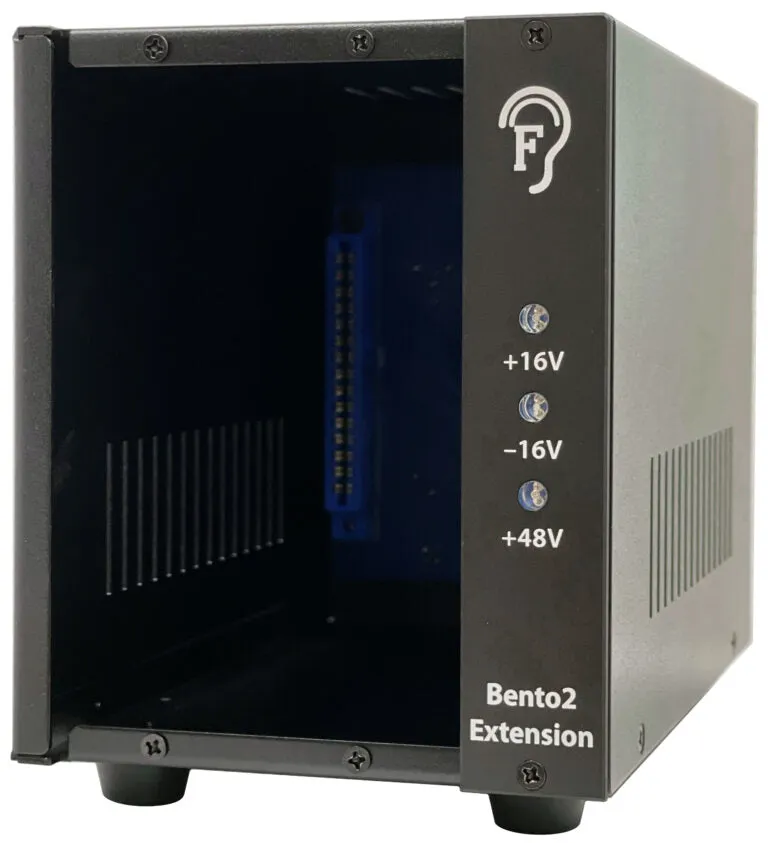

The Bento 2 Pure Analog features an additional DC output connector to support an Bento 2 Extension.

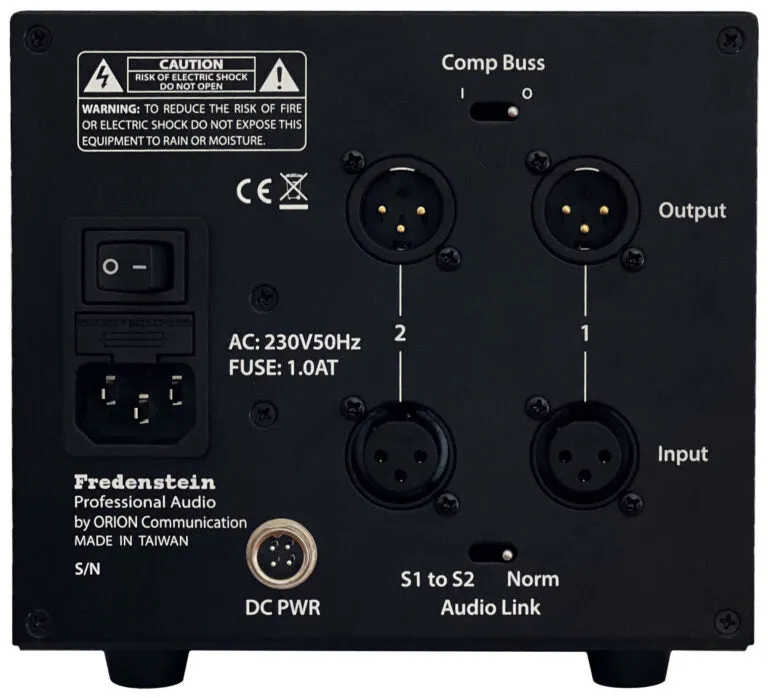

Built-in Audio Routing: Slot 1 can be daisy-chained to slot 2 by simply flipping a switch on the back-panel.
Compressor buss linking: Compressor modules can be linked by engaging a switch on the back- panel as well (works only with two identical compressor modules supporting the link function).
Features & Specs
- 2-slot 500 Series rack with clean power topology
- High power: outputs ±6V DC 2A and 48V DC 0.25A, 500mA per slot
- Extensive mains transformer shielding to eliminate induced hum
- Constructed of the highest grade components
- 1.5mm (59 mil) steel chassis
- Toroidal mains transformer with two built-in thermal fuses
- High-quality Eichicon electrolytic capacitors
- Modules can be daisy-chained by simply flipping switches on the back-panel
- Compressor modules can be linked by engaging switches on the rear panel
- Ground-lift switch
