EPOC X has been designed with the following improvements:

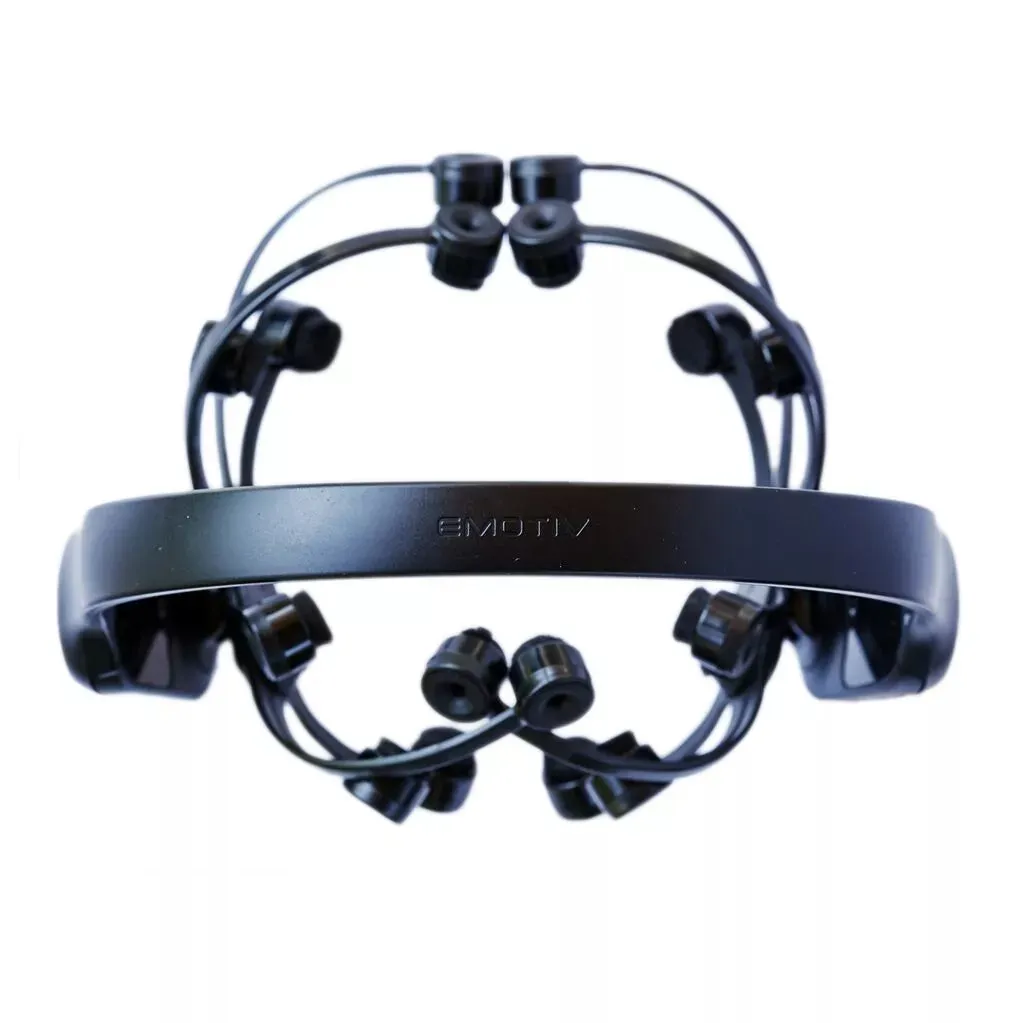

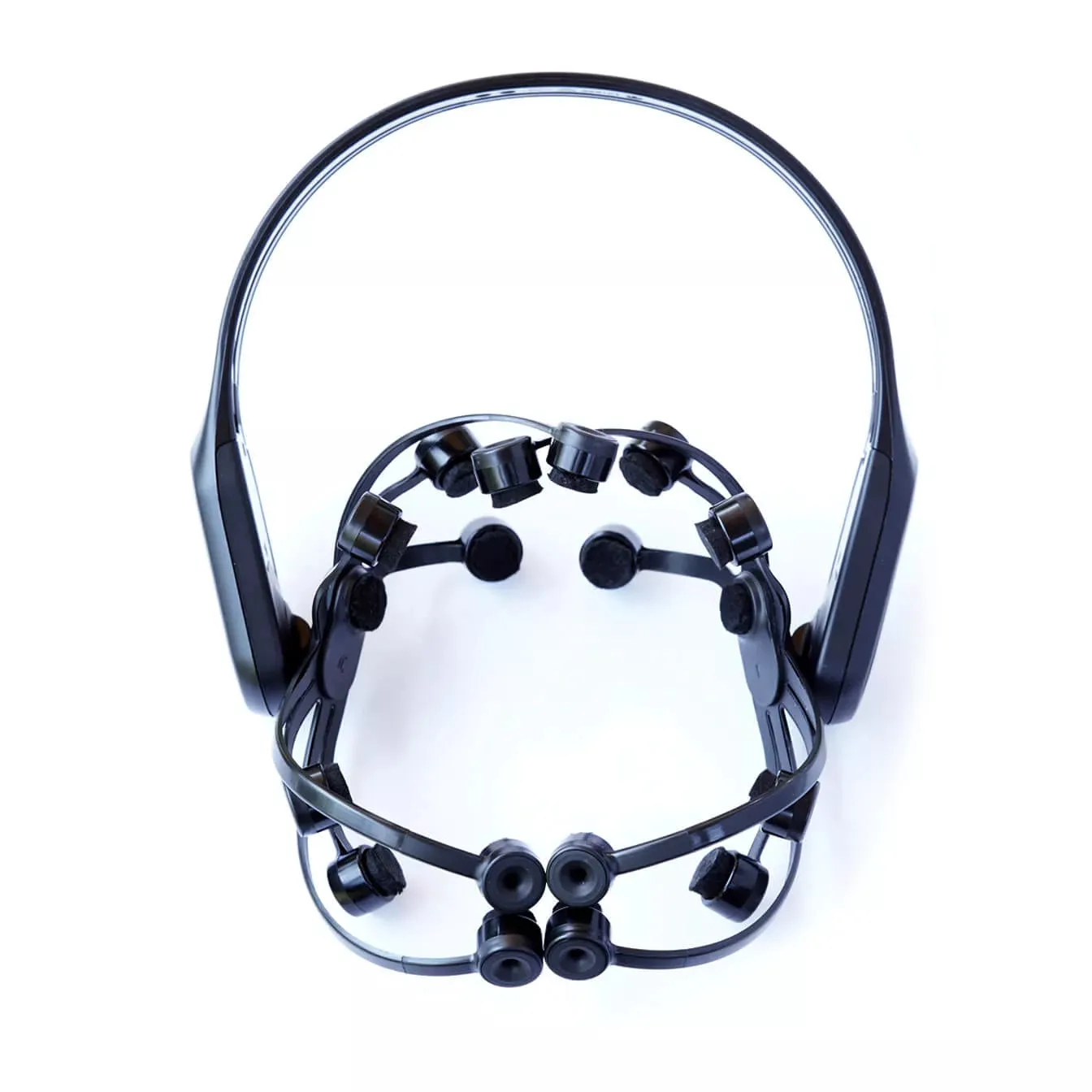

• Rotating headband that can be positioned on top or at the rear of the head — ideal for sleep studies or accommodating a head support.
• Electroplated electrodes to reduce oxidation and sustainably designed sensors — no more sensor clip breakages.
• Opening at the rear of each sensor allows for easy rehydration without moving the headset.
• Adjusted and relocated amplifiers to reduce noise and improve signal quality.
• Updated antenna and radio for improved headset performance.

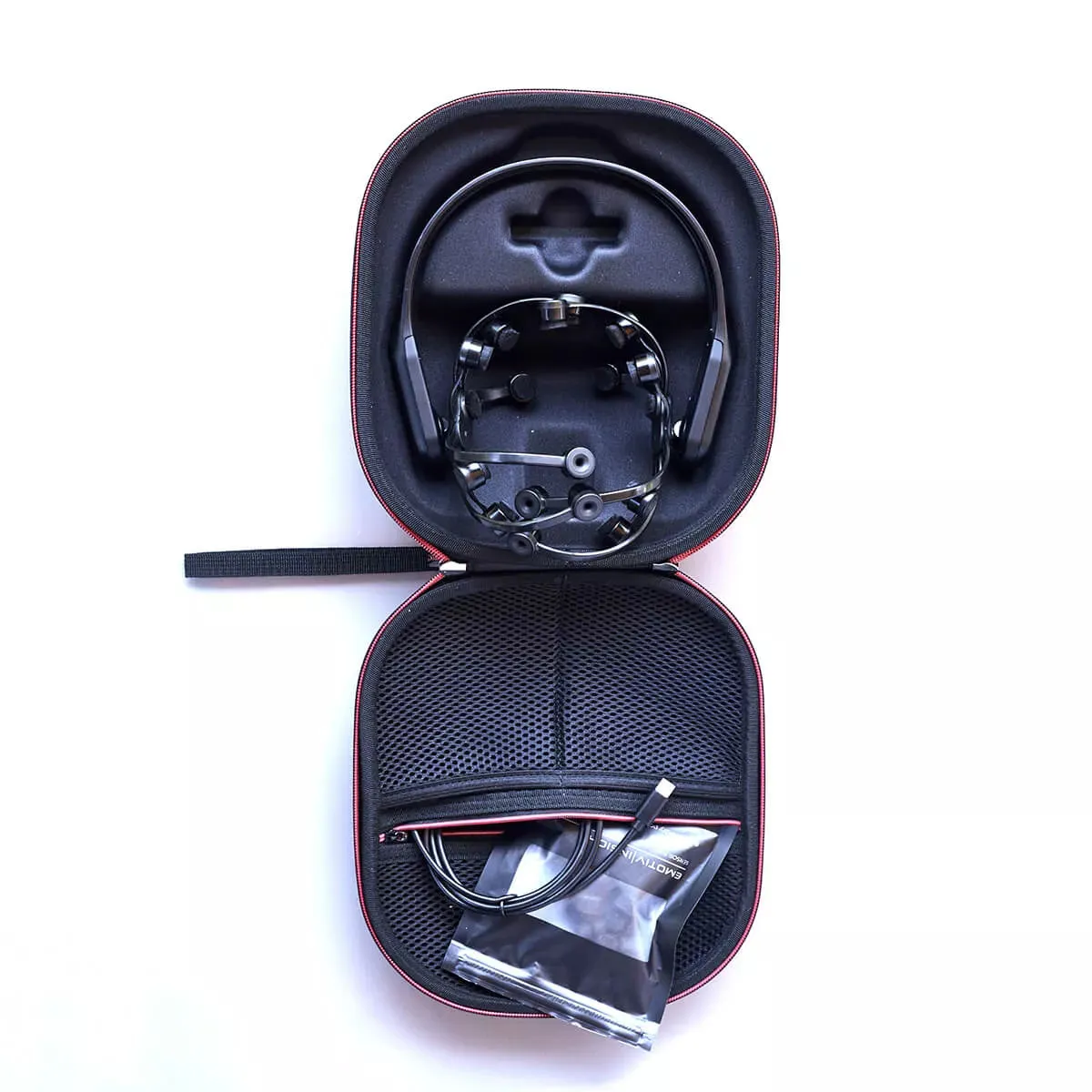

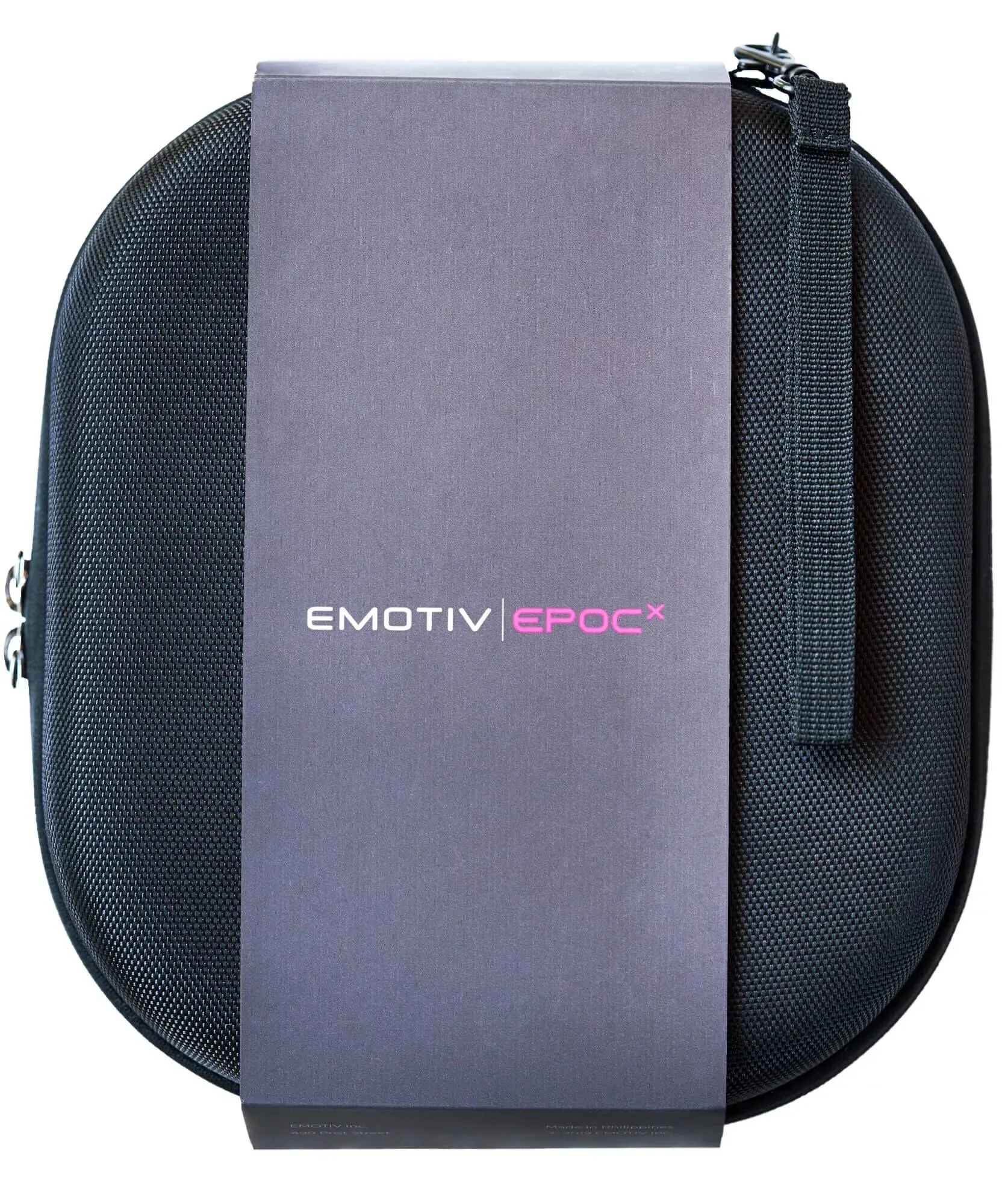

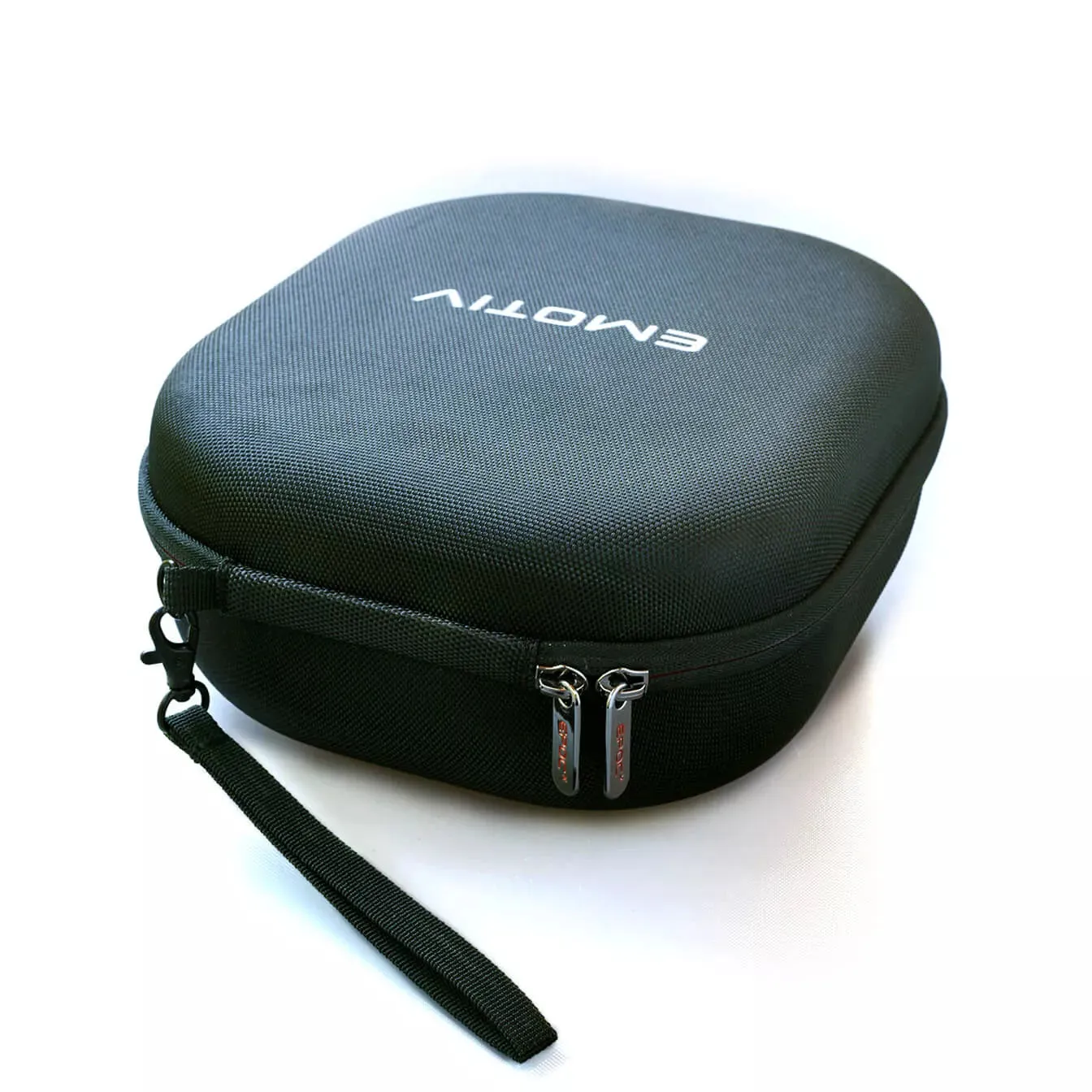

• Shipped in a protective and reusable travel case.

EEG sensors

14 channels: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4

2 references: CMS/DRL references at P3/P4; left/right mastoid process alternative

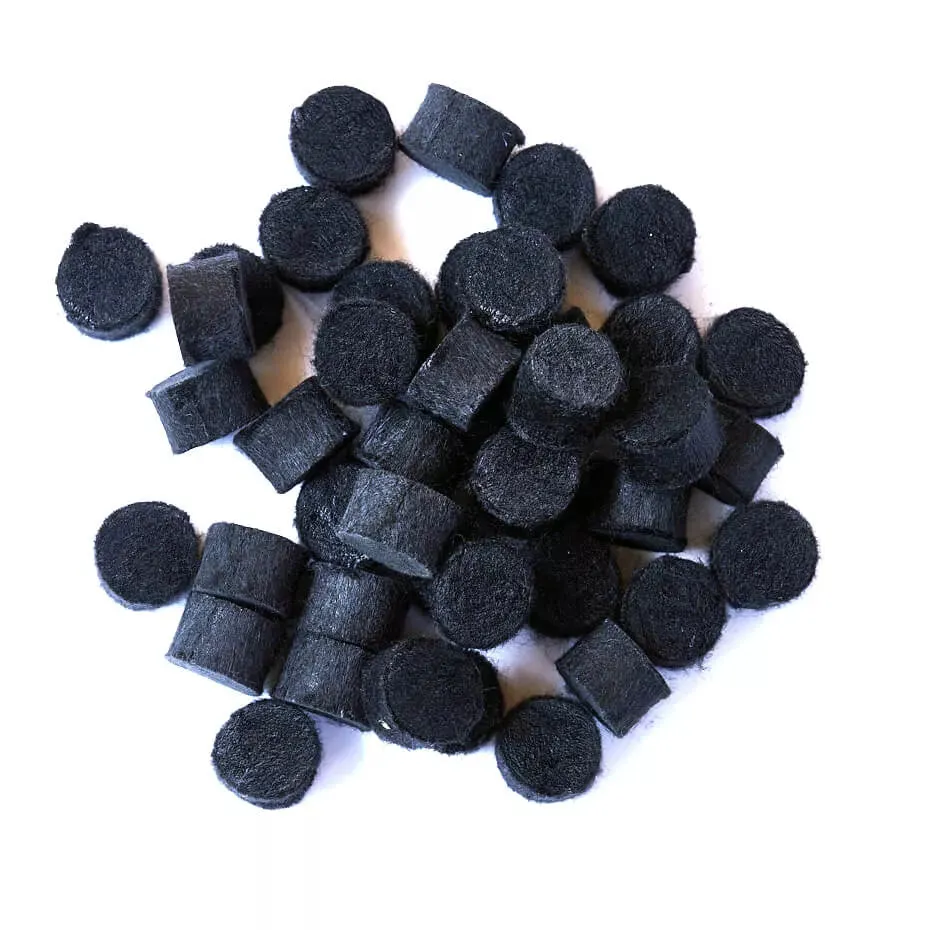

Sensor material: Saline soaked felt pads

Motion sensors

IMU part:ICM-20948

Quaternions: normalized, 4D

Resolution: 16 bits

Connectivity

Wireless: Bluetooth® Low Energy (improved connectivity with new antenna) Bluetooth® 5.0 Ready – We currently use Bluetooth® SMART (also known as Bluetooth 4.0 Low Energy Protocol) support for Bluetooth® 5.0 will be available with upcoming software and firmware updates.

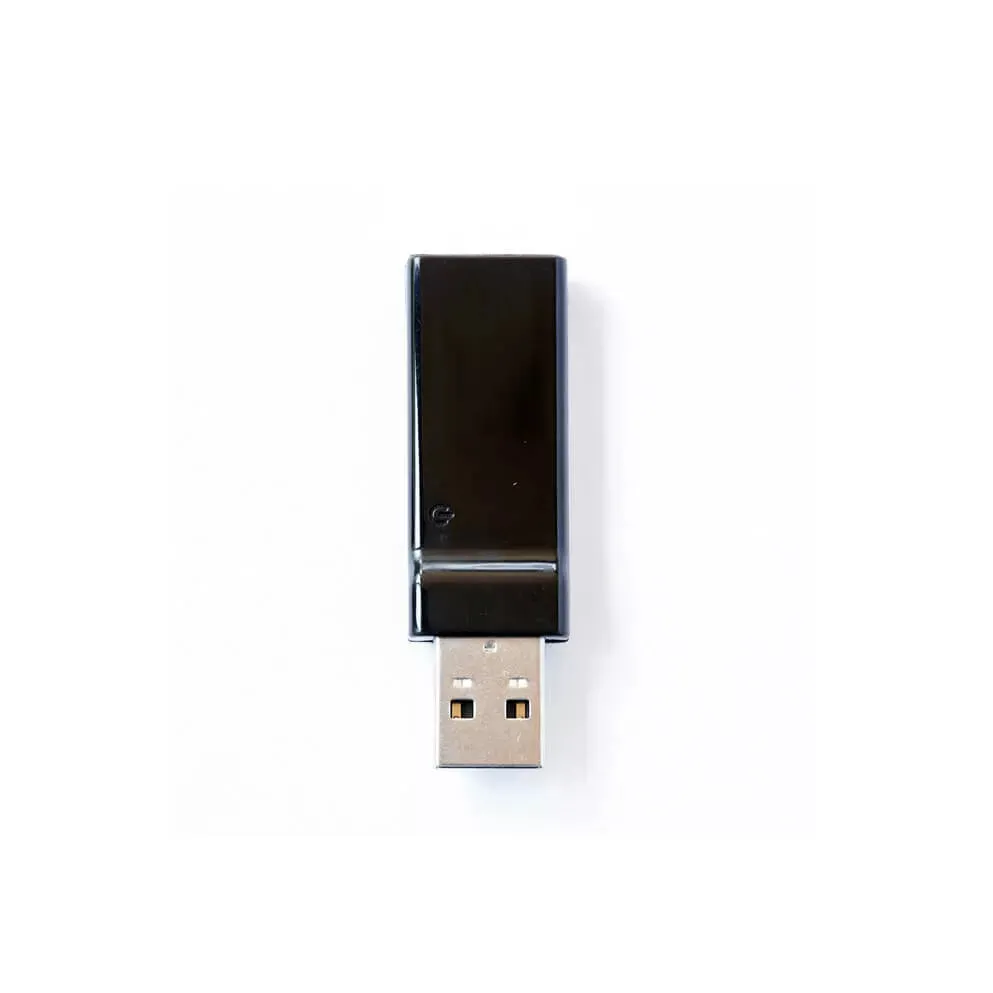

Proprietary USB receiver: 2.4GHz band

USB: to change headset settings & Extender

Available detections**

Mental Commands: neutral up to 4 pre-trained items per training profile

Performance Metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus

Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench, Laugh, Smirk L/R

EEG signals

Sampling method: Sequential sampling, single ADC

Sampling rate: 2048 internal downsampled to 128 SPS or 256 SPS (user configured)

Resolution: LSB = 0.51µV (14 bits mode), 0.1275µV (16 bits mode)

Bandwidth: 0.16 – 43Hz, digital notch filters at 50Hz and 60Hz

Filtering: Built in digital 5th order Sinc filter

Dynamic range (input referred): 8400 μV(pp)

Coupling mode: AC coupled

Power

Battery: Internal Lithium Polymer battery 595mAh

Battery life: up to 12 hours using USB receiver, up to 6 hours using Bluetooth Low Energy

Weight

170g

Dimensions

9 x 15 x 15 cm
