Product Description

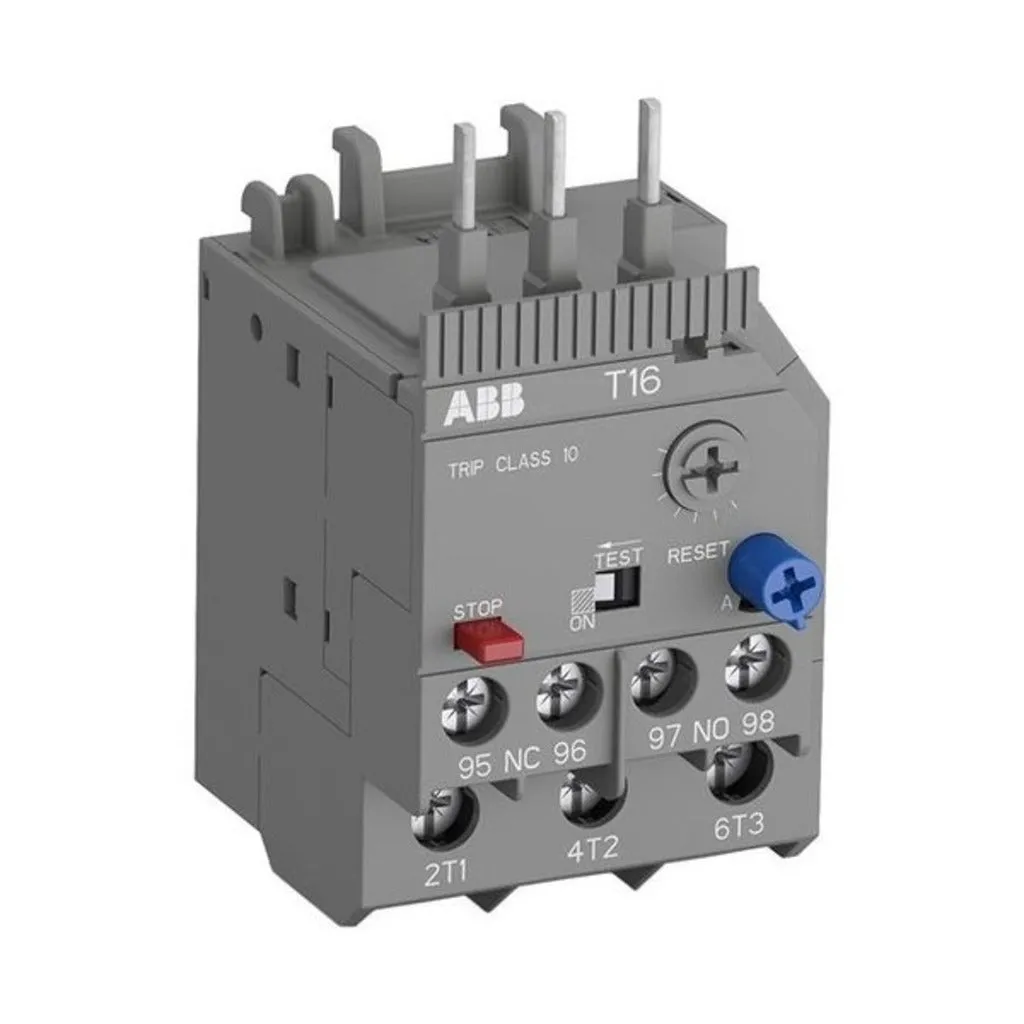

• The T16-0.13 thermal overload relay is an economic electromechanical protection device for the main circuit

• It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10

• Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication

• The overload relays are connected directly to the mini contactors or block contactors

• Single mounting kits are available as accessory

• Product Net Width : 45 mm

• Product Net Height : 76.7 mm

• Product Net Depth / Length : 53.5 mm

• Product Net Weight : 0.1 kg

• Rated Operational Voltage : Auxiliary Circuit 600 V AC/DC , Main Circuit 690 V AC

• Rated Impulse Withstand Voltage (U_imp) : Auxiliary Circuit 6 kV , Main Circuit 6 kV

• Rated Insulation Voltage (U_i) : 690 V

• Number of Poles : 3

• Number of Auxiliary Contacts NC : 1

• Number of Auxiliary Contacts NO : 1

• Number of Protected Poles : 3

• Conventional Free-air Thermal Current (I_th) : Auxiliary Circuit NC 6 A , Auxiliary Circuit NO 4 A

• Degree of Protection : IP20

• Pollution Degree : 3

• Tightening Torque : Auxiliary Circuit 1 ... 1.2 N·m , Main Circuit 1.1 ... 1.5 N·m

• Wire Stripping Length : Auxiliary Circuit 9 mm , Main Circuit 12 mm

• Recommended Screw Driver : Main Circuit Pozidriv 2

• Mounting Position : Position 1 to 5

• Power Loss : at Rated Operating Conditions per Pole 1.1 ... 2.0 W

• Suitable For : B6,BC6,B7,BC7,VB6,VBC6,VB7,VBC7,AS09,AS12,AS16

• Standards : IEC/EN 60947-1,IEC/EN 60947-4-1,IEC/EN 60947-5-1,UL 60947-1,UL 60947-4-1
