Product Description
-

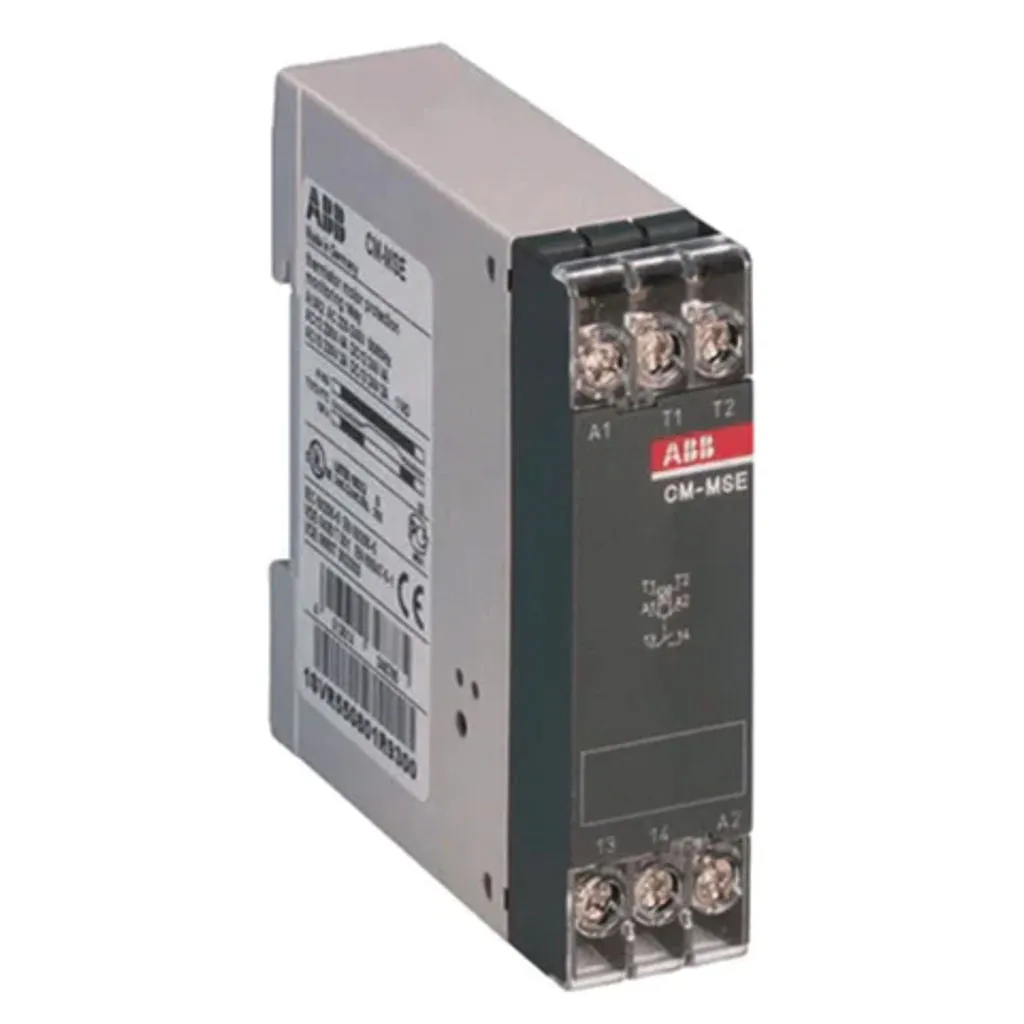

The CM-MSE relay is from the CM thermistor motor protection relay range. This relay operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact rated at 250 V / 4 A
-
It features one sensor circuit for monitoring of PTC temperature sensors or bimetals. This relay offers automatic reset and works according to the closed-circuit principle
-
A sealable transparent cover for protection against unauthorized changes is available as accessory
-
Function : 1 sensor circuit , Auto reset
-
Rated Control Supply Voltage (Us) : 24 V AC
-
Output : 1 n/o contact
-
Terminal Type : Screw Terminals
-
Standards : EN 50581,IEC/EN 61000-6-2,IEC/EN 61000-6-3,UL 508,CAN/CSA C22.2 No.14
-
Product Net Width : 22.5 mm
-
Product Net Height : 78 mm
-
Product Net Depth / Length : 78.5 mm
-
Product Net Weight : 0.105 kg
Product Specification
|
Type |
Rated control supply voltage |
Product ID |
|
CM-MSE |
24 V AC |
1SVR550805R9300 |
|
CM-MSE |
110-130 V AC |
1SVR550800R9300 |
|
CM-MSE |
220-240 V AC |
1SVR550801R9300 |
|
CM-MSS.12S |
24 V AC/DC |
1SVR730700R0100 |
|
CM-MSS.12P |
24 V AC/DC |
1SVR740700R0100 |
|
CM-MSS.13S |
110-130 V AC/220-240 V AC |
1SVR730700R2100 |
|
CM-MSS.13P |
110-130 V AC/220-240 V AC |
1SVR740700R2100 |
|
CM-MSS.22S |
24 V AC/DC |
1SVR730700R0200 |
|
CM-MSS.22P |
24 V AC/DC |
1SVR740700R0200 |
|
CM-MSS.23S |
110-130 V AC/220-240 V AC |
1SVR730700R2200 |
|
CM-MSS.23P |
110-130 V AC/220-240 V AC |
1SVR740700R2200 |
