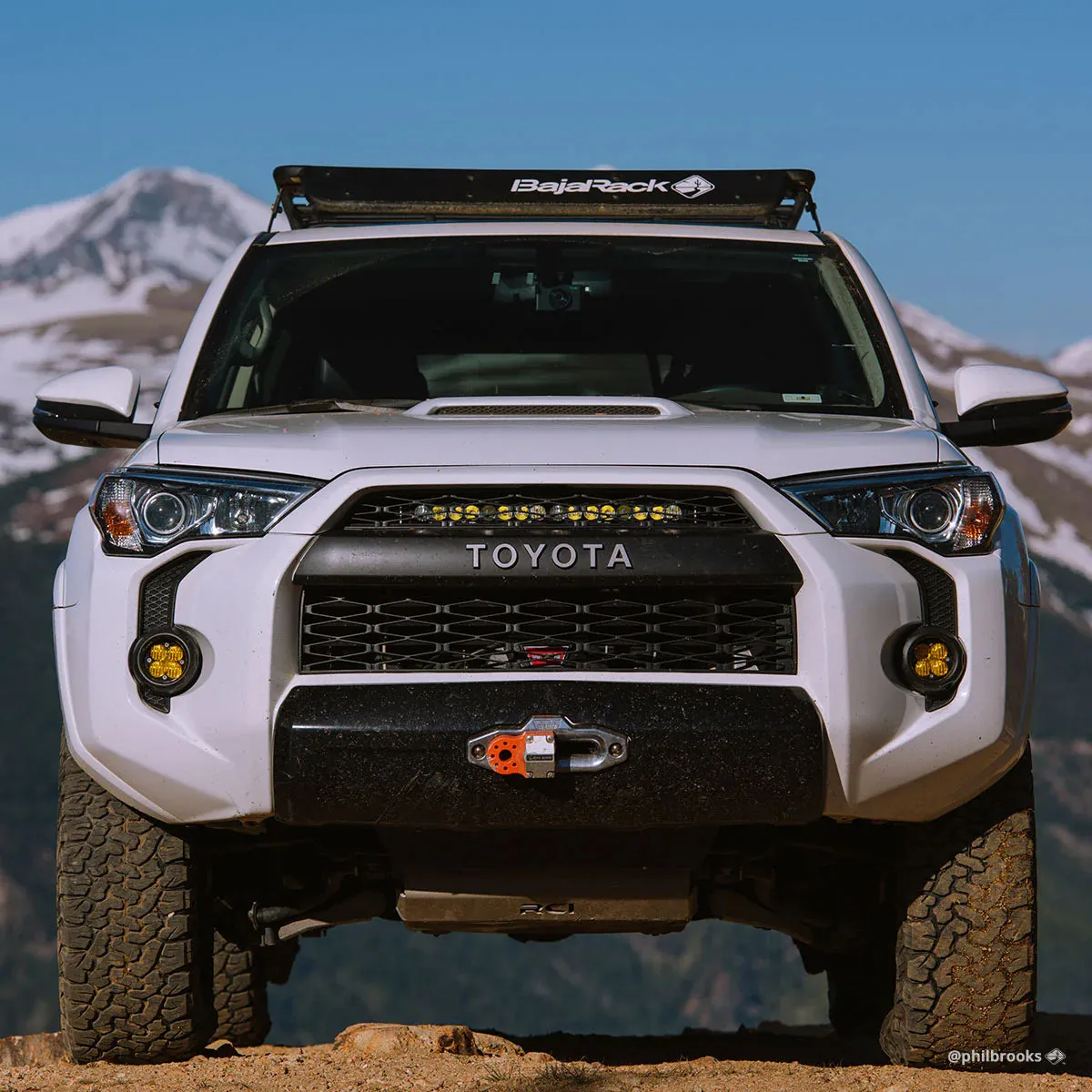

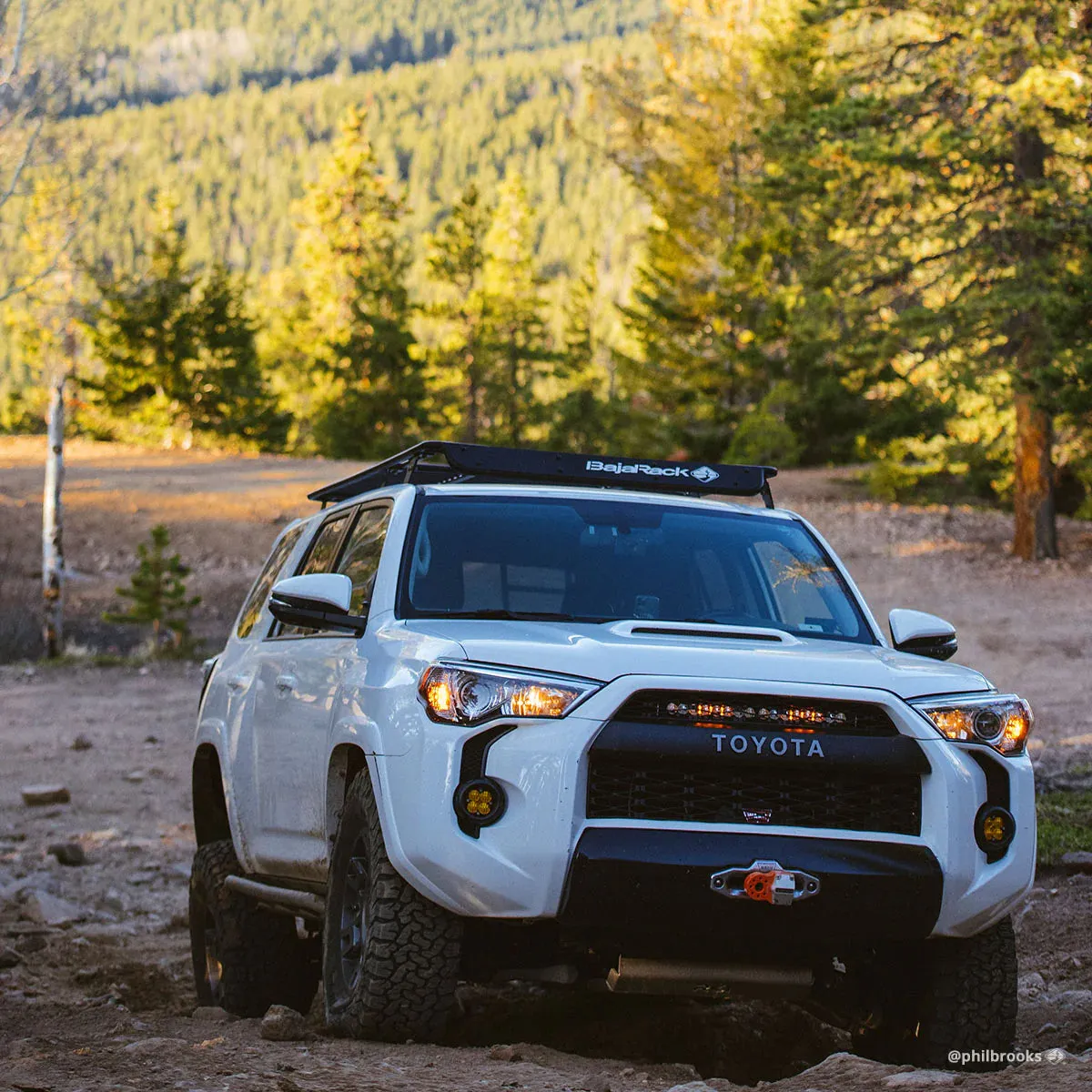

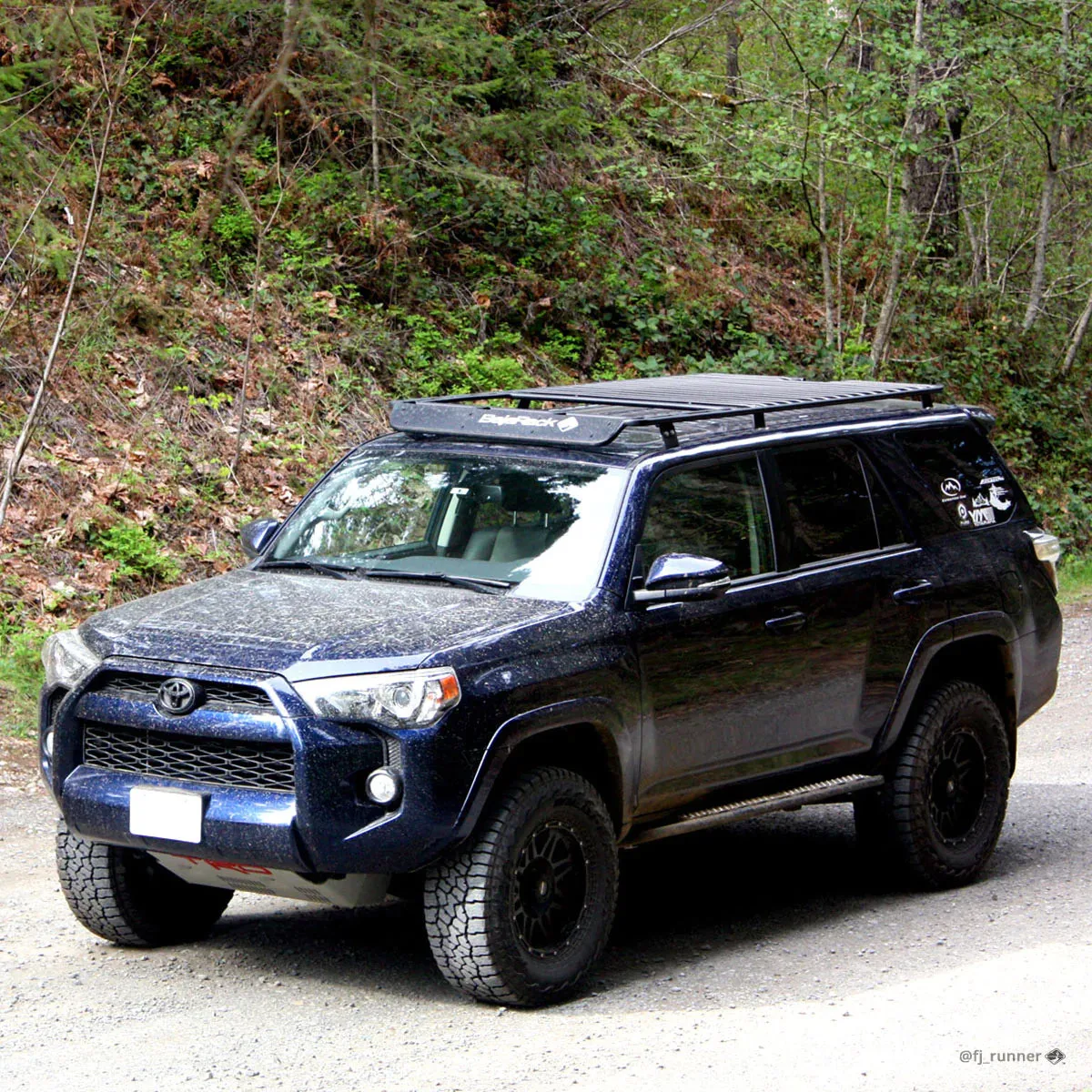

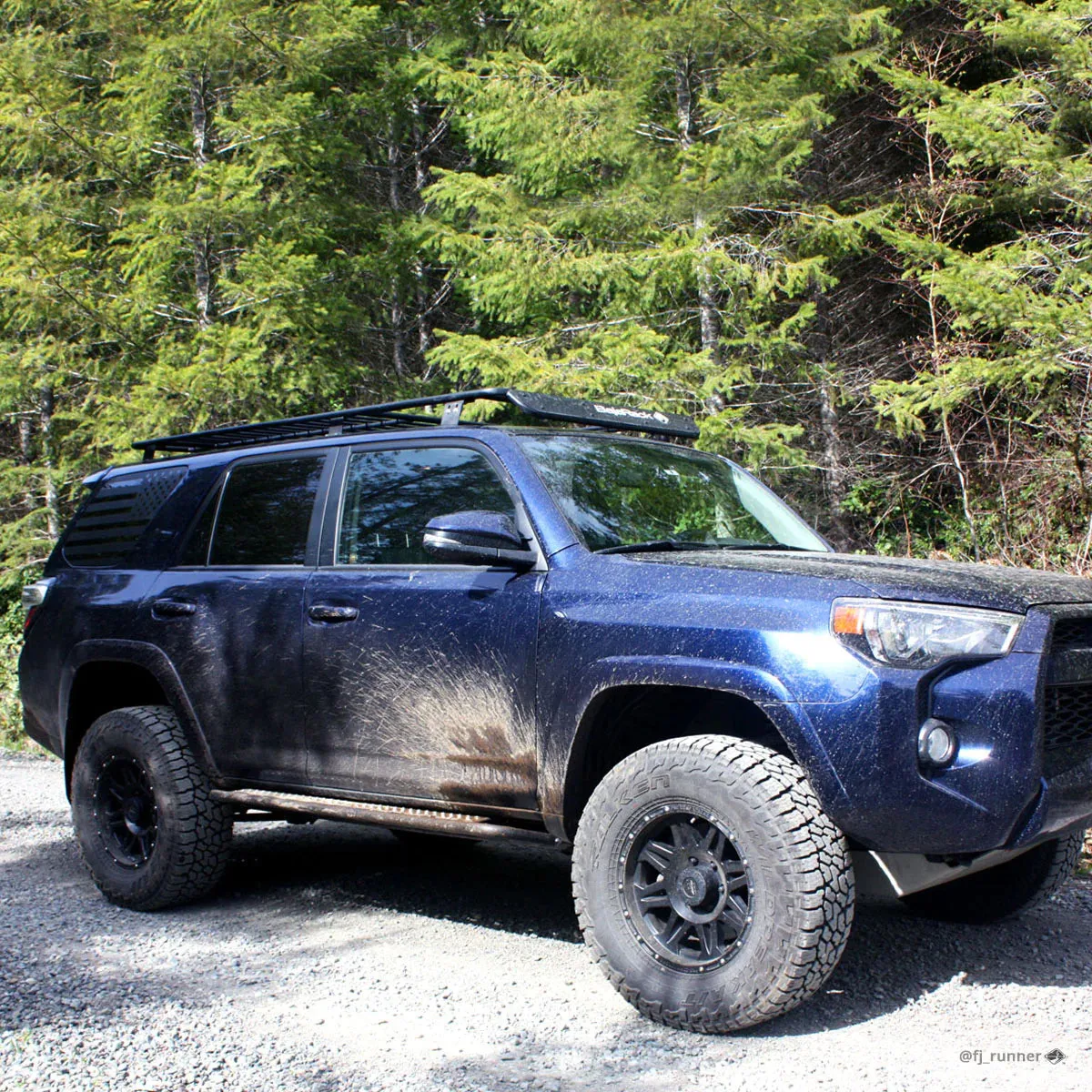

This flat, low-profile Utility Toyota 5th Gen 4Runner roof rack has a sunroof cutout and is built with US-Made, cold-rolled steel tubing and best-in-class powder coating to ensure quality.

Roof Rack for 4runner with Sunroof is completely flat to transport large objects such as lumber, canoes, or rooftop tents. If garage height is a concern, this rack is the best option. The installation is done directly to the body frame without drilling, the outside frame is made of 1-inch tubing, and the flooring with ½ inch cold roll steel tubing.

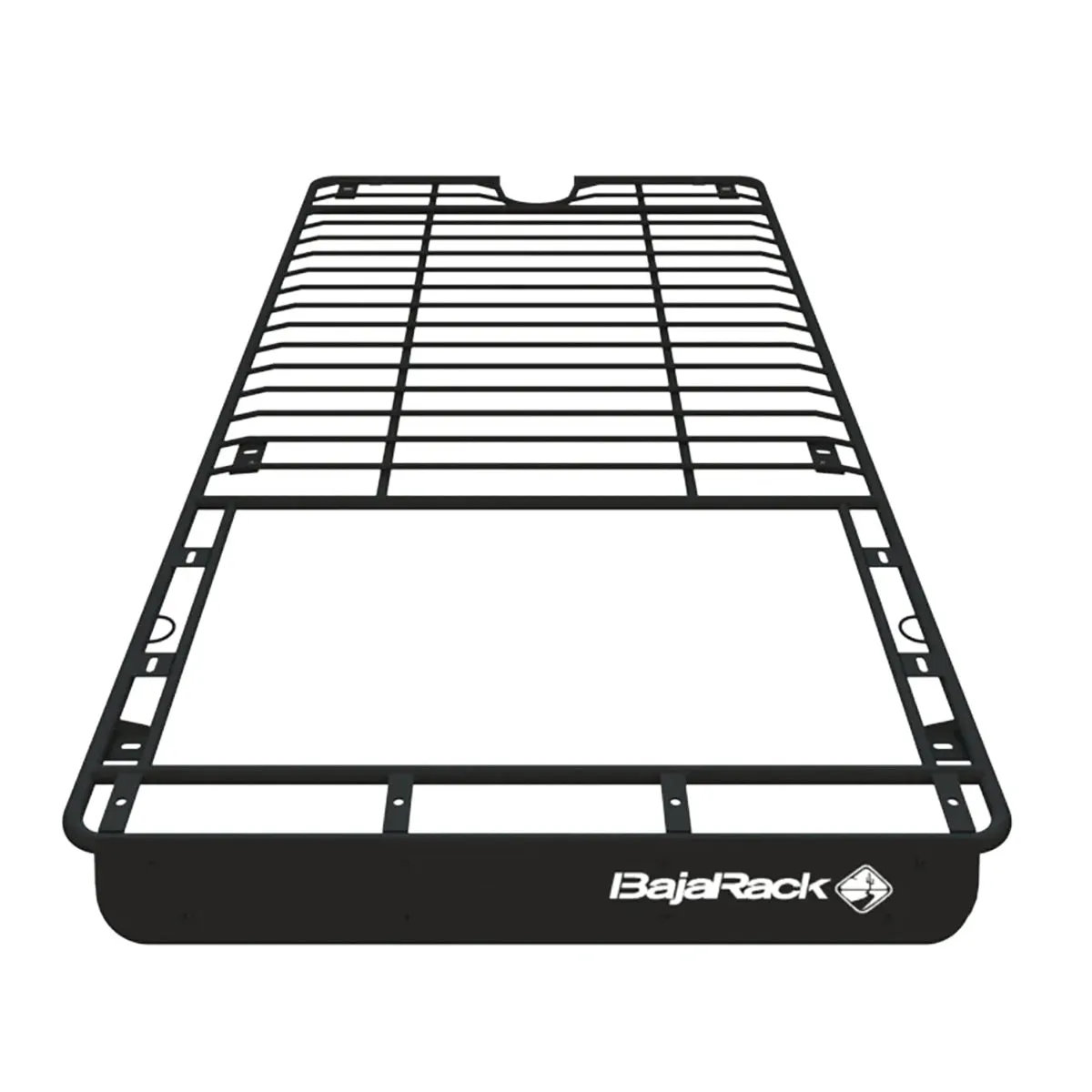

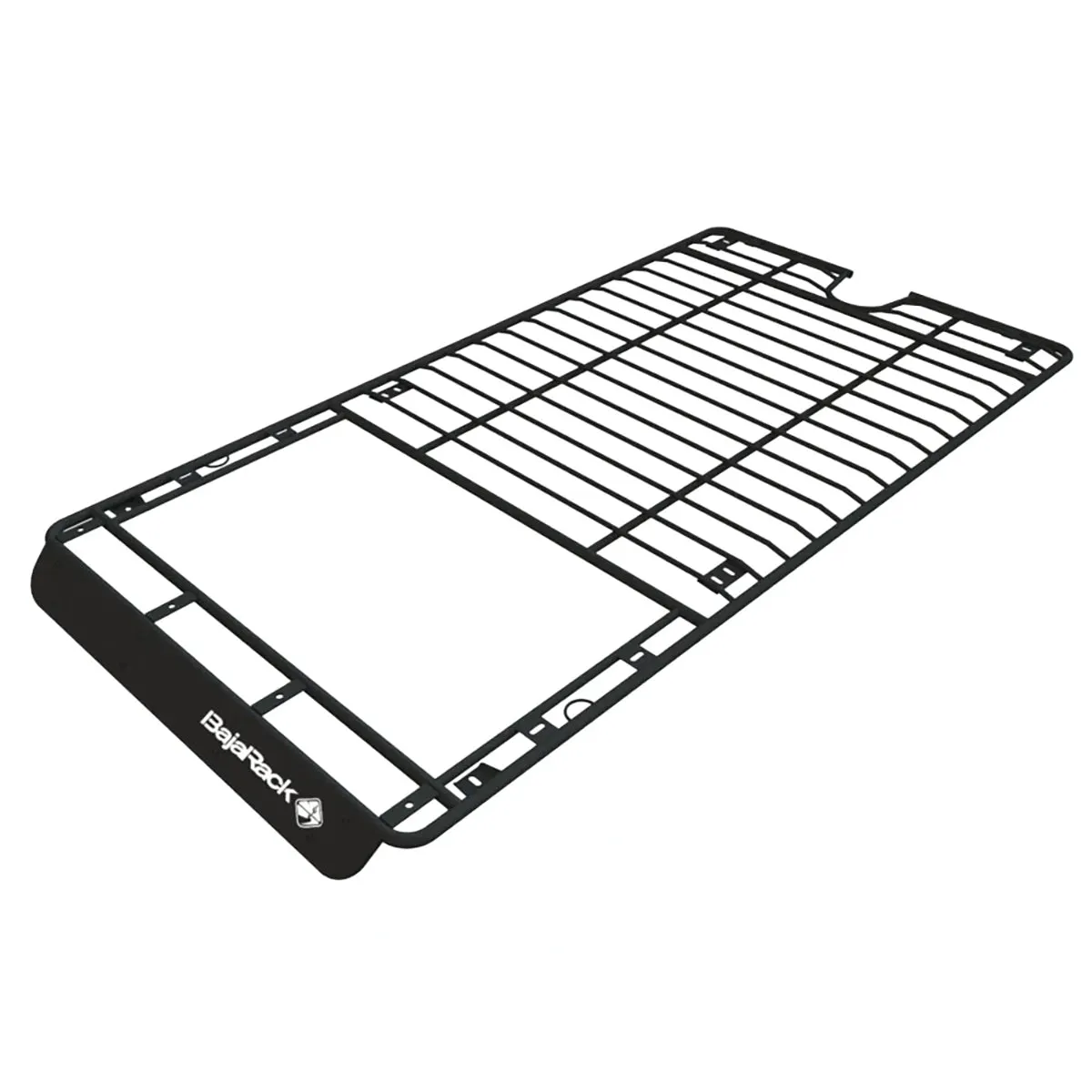

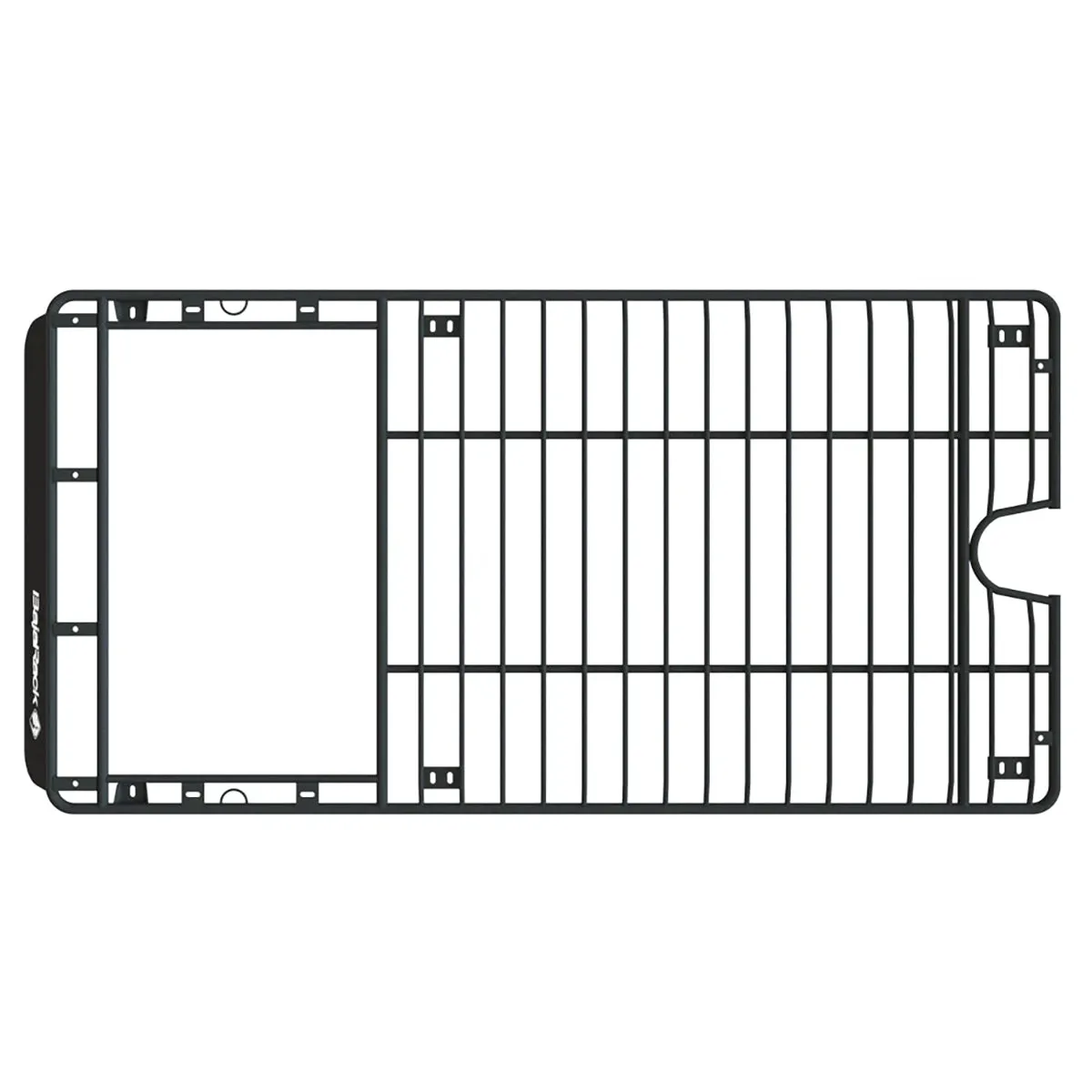

This rack was designed around the 4 factory mounting positions on the roof of the vehicle without obstructing the operation of the sunroof, there is a cutoff on the floor of the rack to avoid interference with the roof antenna. No drilling is required.

Each rack includes all mounting brackets, stainless steel hardware, and an aluminum wind deflector.

• Material and Thickness: 1” (25.4mm) and 1/2”(12.7mm) Steel tubing
  Wind Deflector: .062” (1.57mm) 5050-H32 Aluminum
  Finish: An epoxy primer (rust inhibitor) with black powder coating
  Rack weight: 70 Lb (31.75Kg)
  Load Capacity: Dynamic (while driving) 300Lb (136 kg); Static 500Lb (227 kg)
  Measurements: 46” (1168.4 mm) Wide x 91.75” (2330.45 mm) Long x 1.5” (38.1 mm) tall
  Total Height (Top of the roof to top of rack): 4"
  Cargo area: 19.16ft² (1.78m²)
  Mounting method: Roof mounts (2 front adjustable brackets and 4 support brackets)

• Rack LED Lightbar combo includes: Roofrack BajaDesign S8 40" Driving/Combo LED Lightbar S8 Wiring Harness

• Rack LED Lightbar LED Aux Lights combo includes: Roofrack   BajaDesign S8 40" Driving/Combo LED Lightbar S8 Wiring Harness 2 x BajaDesign Squadron Sport Driving/Combo LEDs.

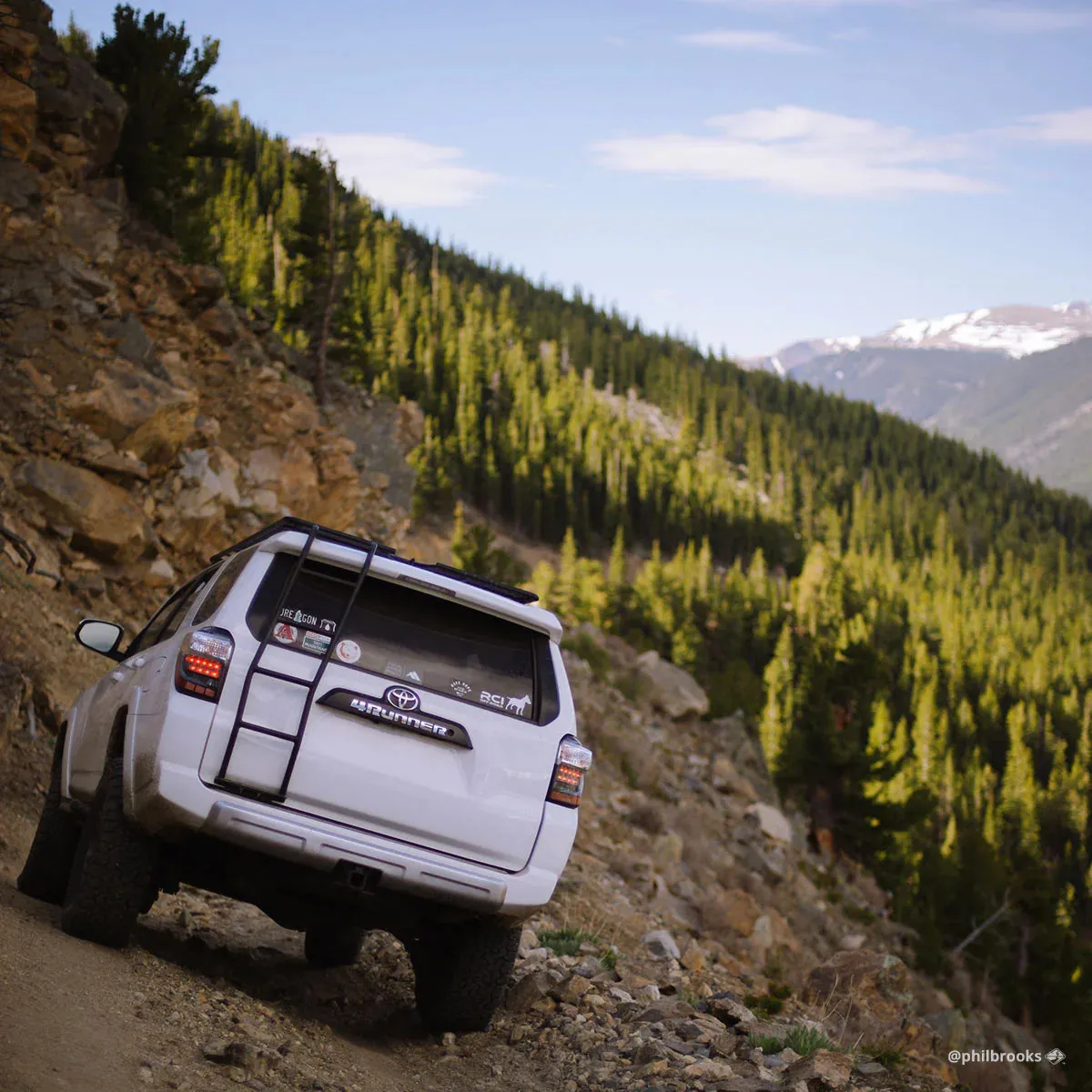

IF YOU BUY A RACK LADDER PLEASE CHECK THIS NOTE: Before you install your new BajaRack ladder check the gap on top of the hatch it needs to be 5/16” to 3/8” inch, if the upper top of the ladder does not enter the gap on the hatch do not install, and check the gap clearance with a dealer or shop.

EXTREMELY IMPORTANT NOTE: Please verify the lip (edge) measurement before purchasing or installing your ladder, the standard dimension is between 0.100” (0.254mm) and 0.200” (0.508mm) if this dimension is larger than 0.200” (0.508mm)  don’t install the ladder, Toyota in some models applies more sealant in this area that can cause the ladder to not fit.
